80cc 2 Stroke Bicycle Engine Kit - Motorized Bike Conversion Kit with Silver Finish | Perfect for Commuting, Off-Road Adventures & DIY Bike Projects
Free shipping on all orders over $50
7-15 days international
9 people viewing this product right now!
30-day free returns
Secure checkout
19425009
Description

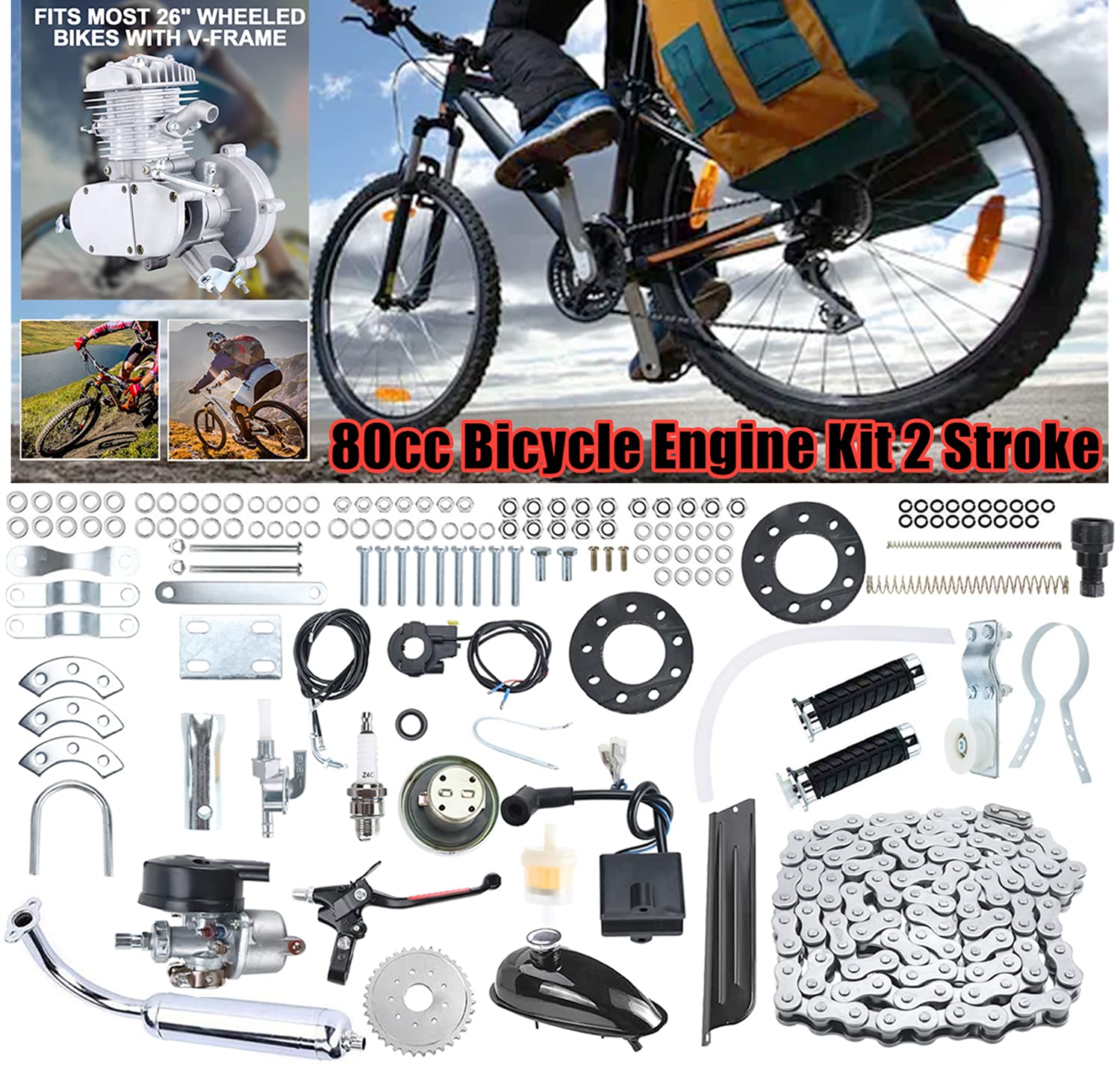

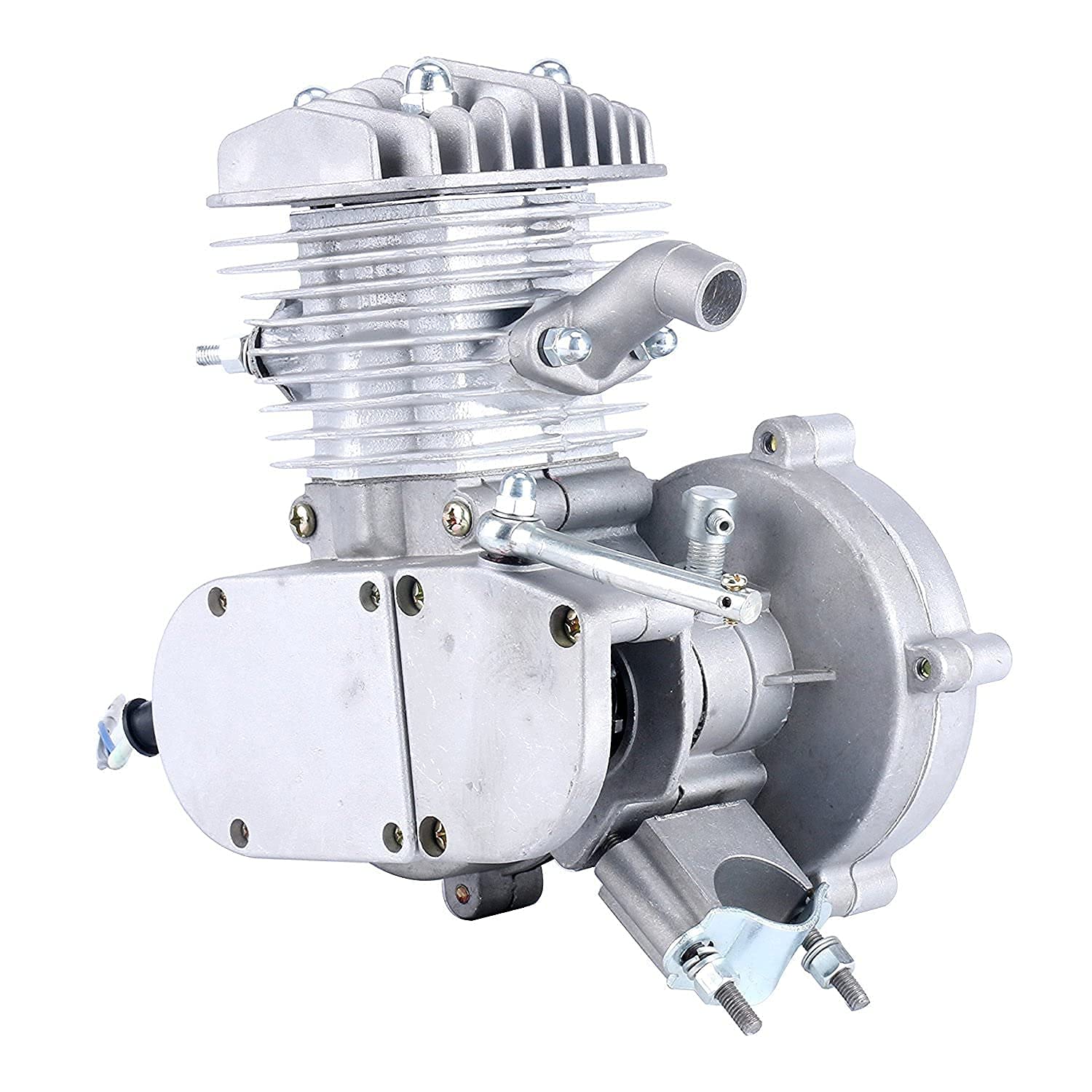

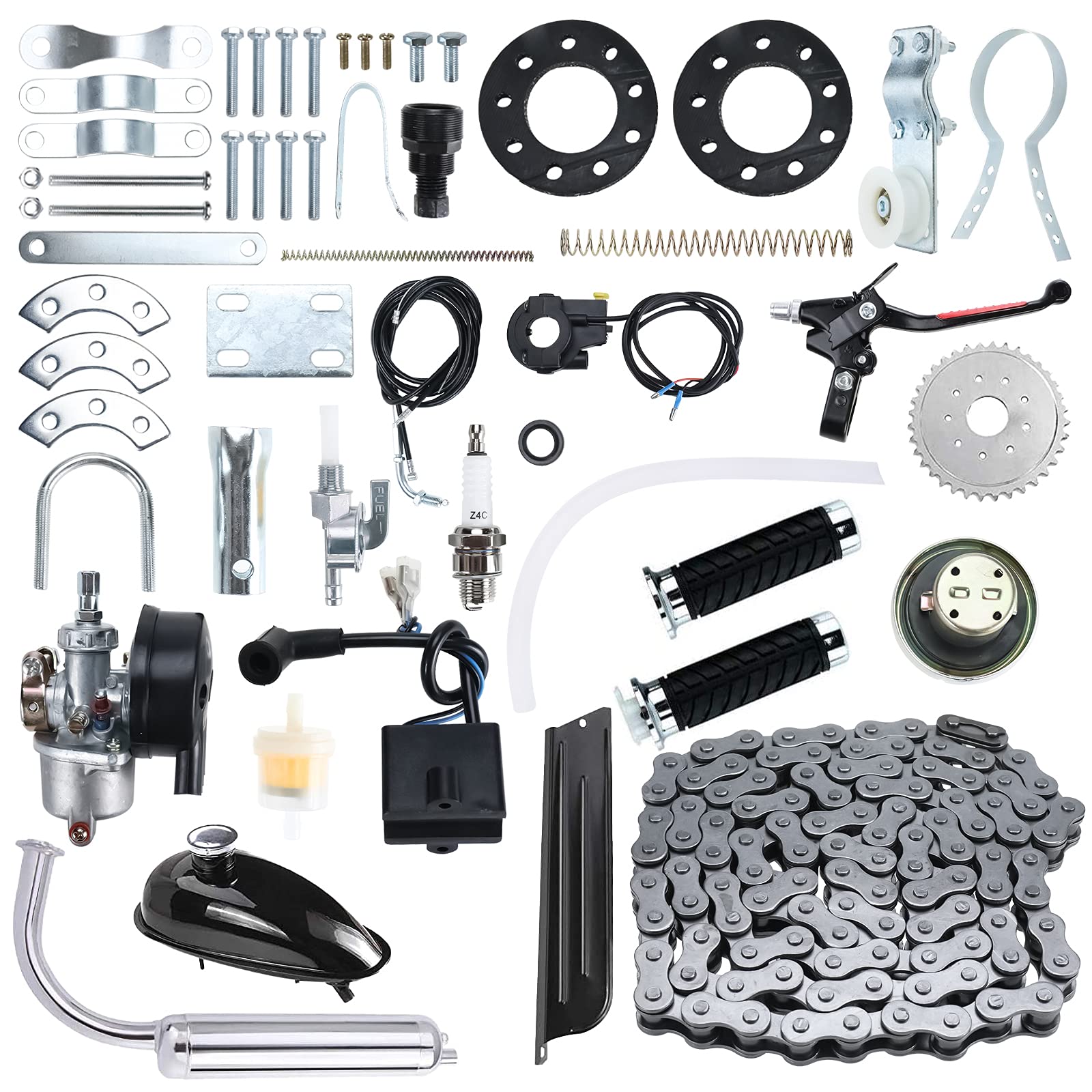

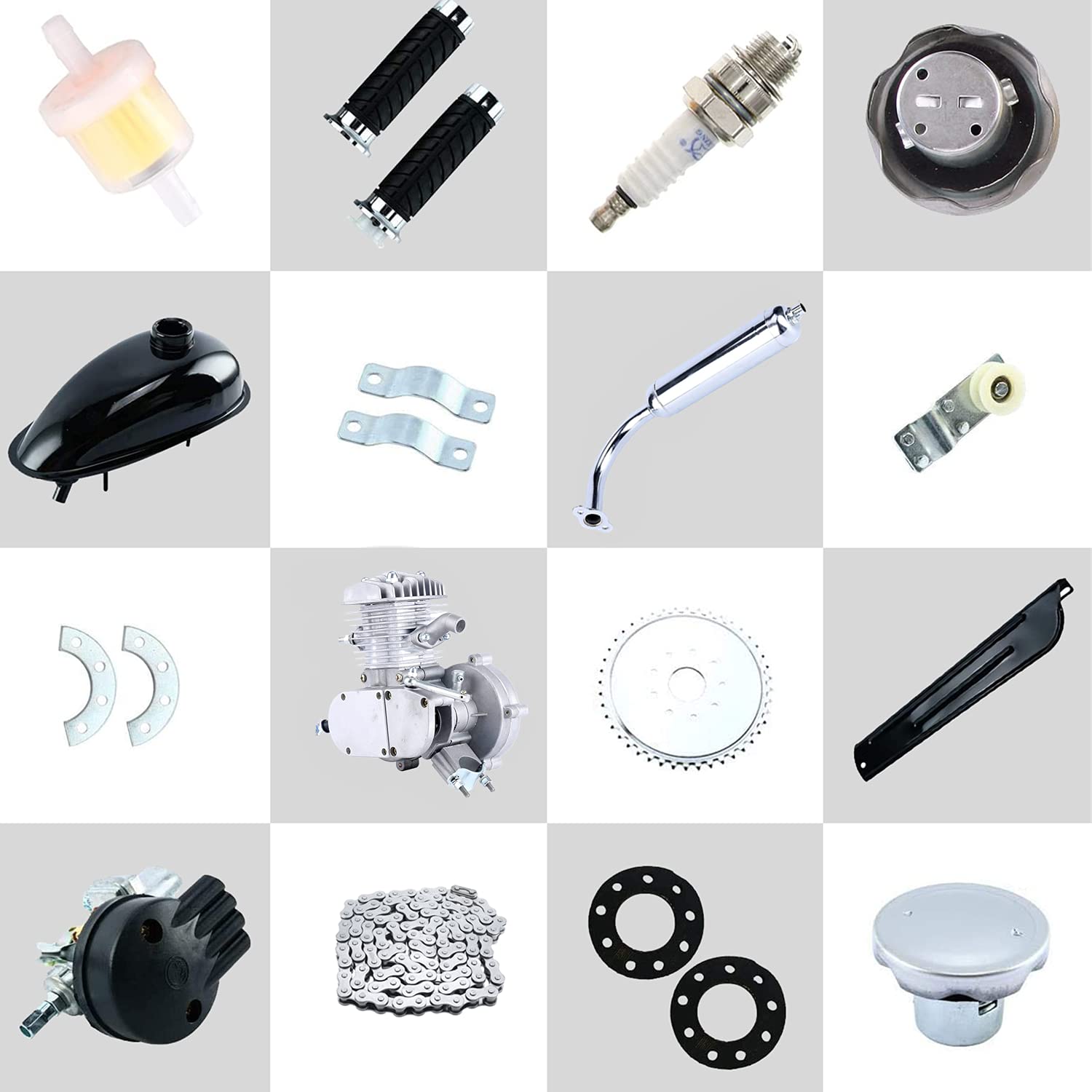

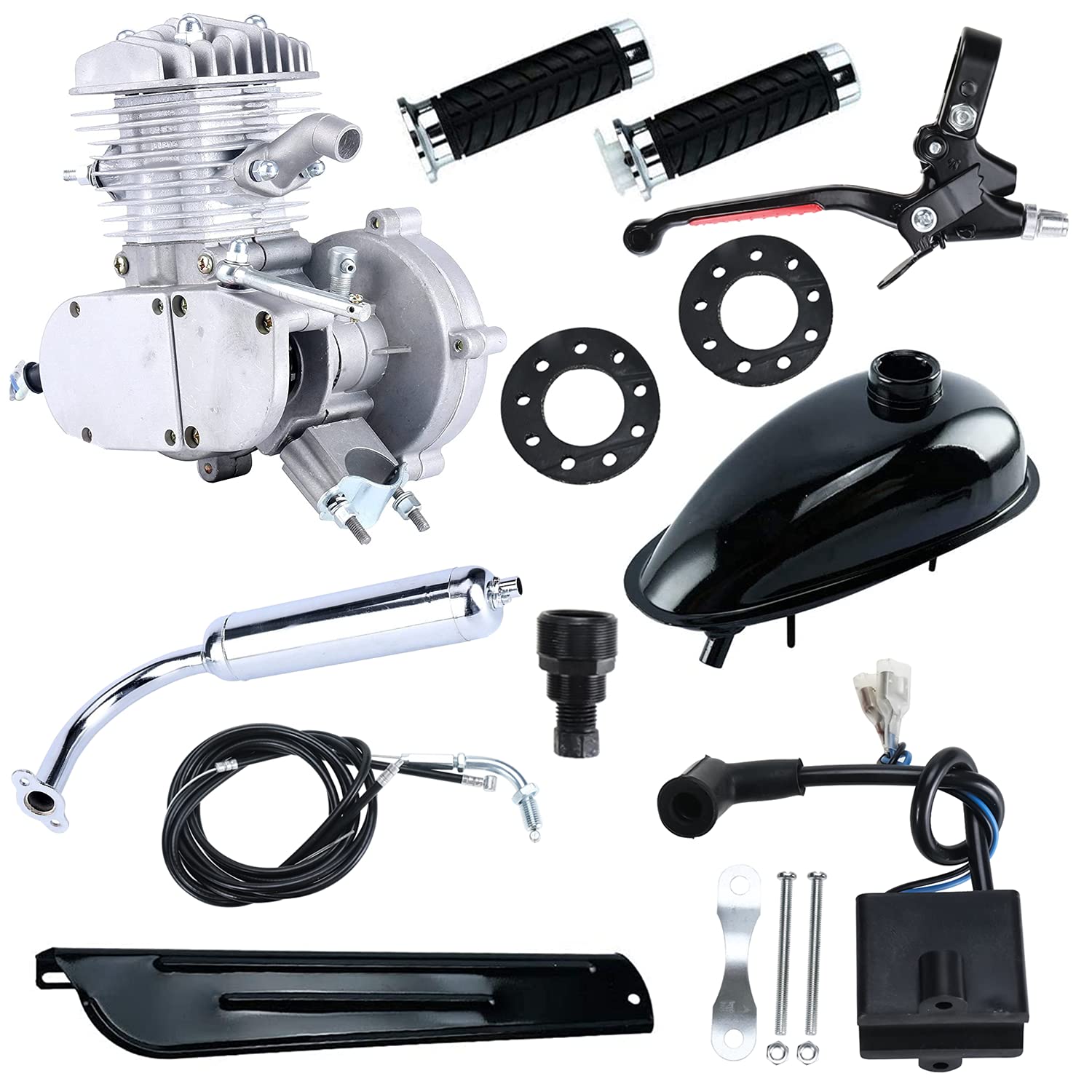

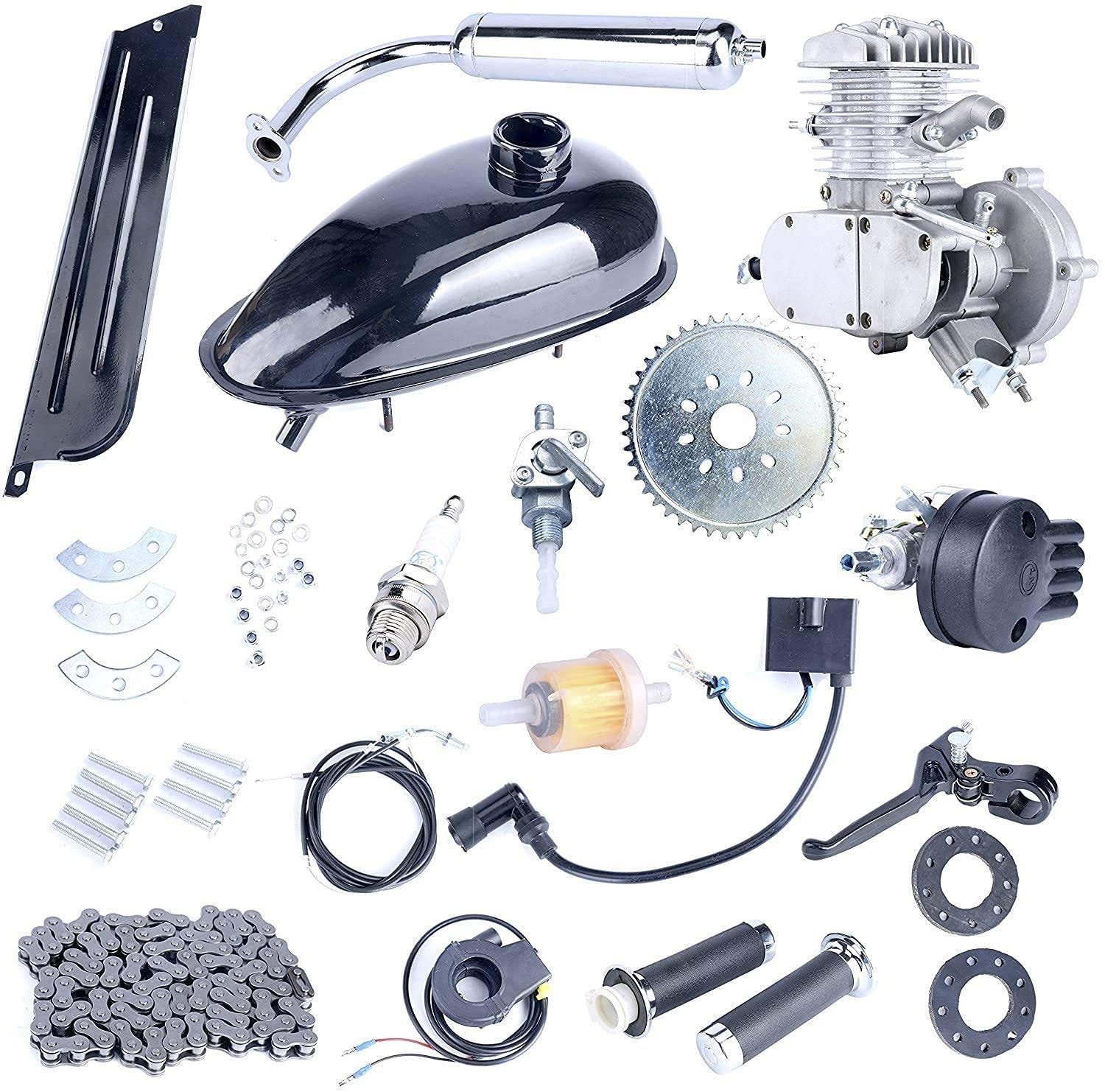

Specifications: Type:2-stroke engine, Carburetor, Ignition coil & CDI, Throttle handlebar set, Throttle cable, Clutch cable, Kill switch, Clutch lever, Chain, Chain cover, 44T Sprocket W/ 9 Hole Clamp Pads, Chain tensioner, Fuel tank, Fuel filter, Gasoline fuel line, Petcock, Muffler. Item Size:20*17*11.5cm Package Size:39*30*19cm Color:Silver Bore & Stroke: 47mm X 40mm=80 CC Rated Power: 2.5Kw/5000r/min (3 horsepower/5000r/min) Max Power: 3.5Kw/6000r/min (5-6 horsepower/6000r/min) Ignition Mode: CID Compression Ratio: 6/0.1 Driving Ratio: 18/0.1 Fuel type: No.90 Lubrication Oil: oil for 2-stroke petrol engine (or oil for 10W/40.10W/30) Mixing Ratio of Fuel and engine Oil: 16:1 for new sets, 20: 1 after running 500km Type of Sparking Plug: Z4C 14MM Volume of oil Consumption: 2.5L/100km Type of Clutch: Friction Plate / Dry Cooling mode: Natural air cooling Speed Limitation: 38km/hour Package Includes: 1.Silver 80cc 2-stroke engine 2. Sprocket clamp assembly with hardware 3. Converter exhaust muffler with heat shield (silver) 4. Push button clutch 5. Heavy duty chain 6. Bearing chain tensioner / idler 7. Carburetor 8. CD ignition coil 9. Kill switch (on throttle) 10. Chain guard 11. Spark plug 12. 2L gas tank with mounting brackets 13. Muffler assembly 14. Exhaust pipe clamp 15. Plug removal tool 16. Standard universal mounting bracket General Information: Please, obey all traffic regulations.
Features
We make certain that all of our manufactures abide by strict quality control assurance measures and use the highest quality material so that we can make certain that all of our customers get only the best. Made for experienced riders and builders, our 80cc engine kit is ready soar- are you?
Power 5-6 HP (horse power) stock -Top Speed 25-35 MPH (miles per hour) stock - Fuel Economy 100-150 miles per gallon

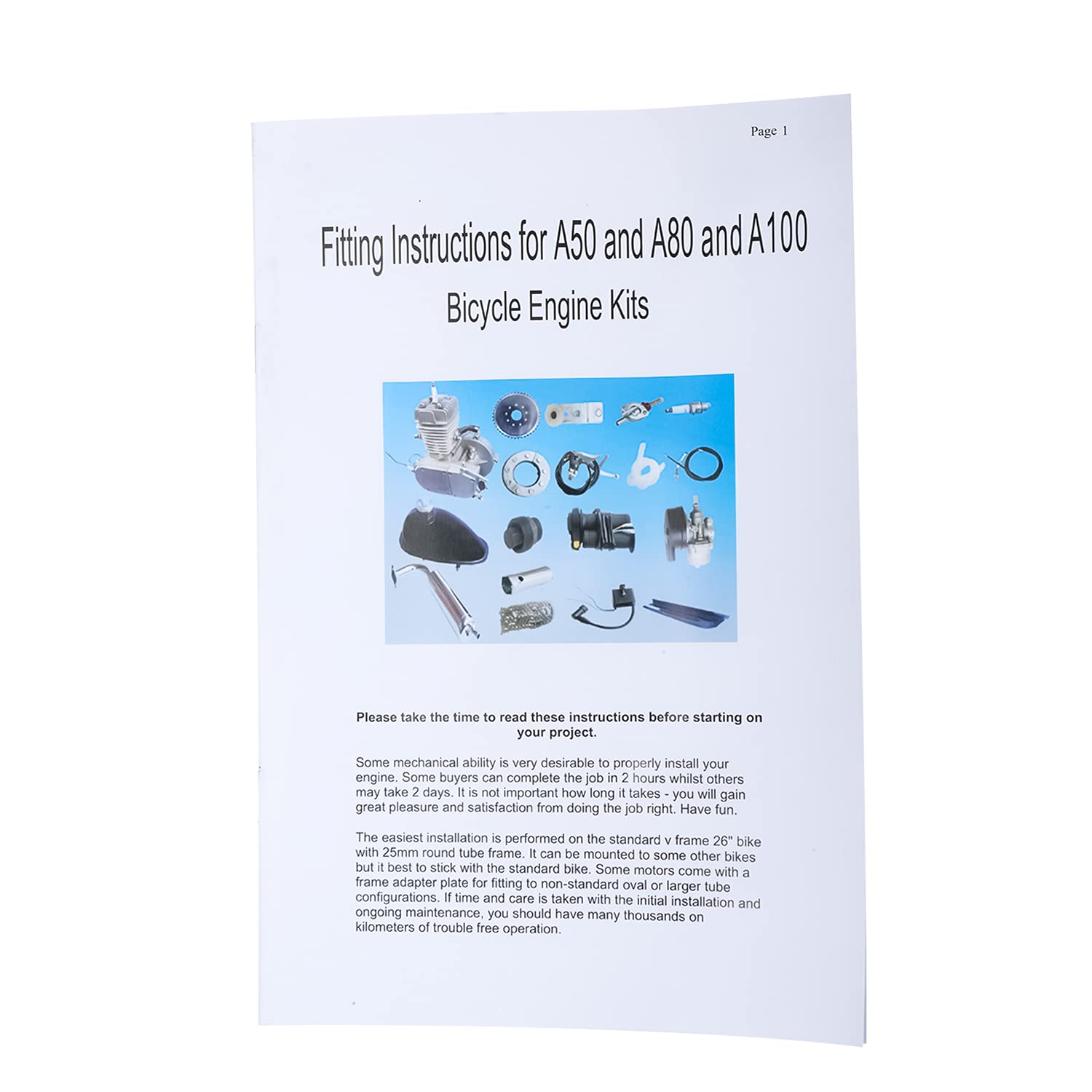

Installation is a breeze! The rider only needs some basic hardware skills, tools, and around 2-3 hours for installation and fine tuning adjustments (Note Seller is not responsible for misuse or this kit or any warranty after installation).

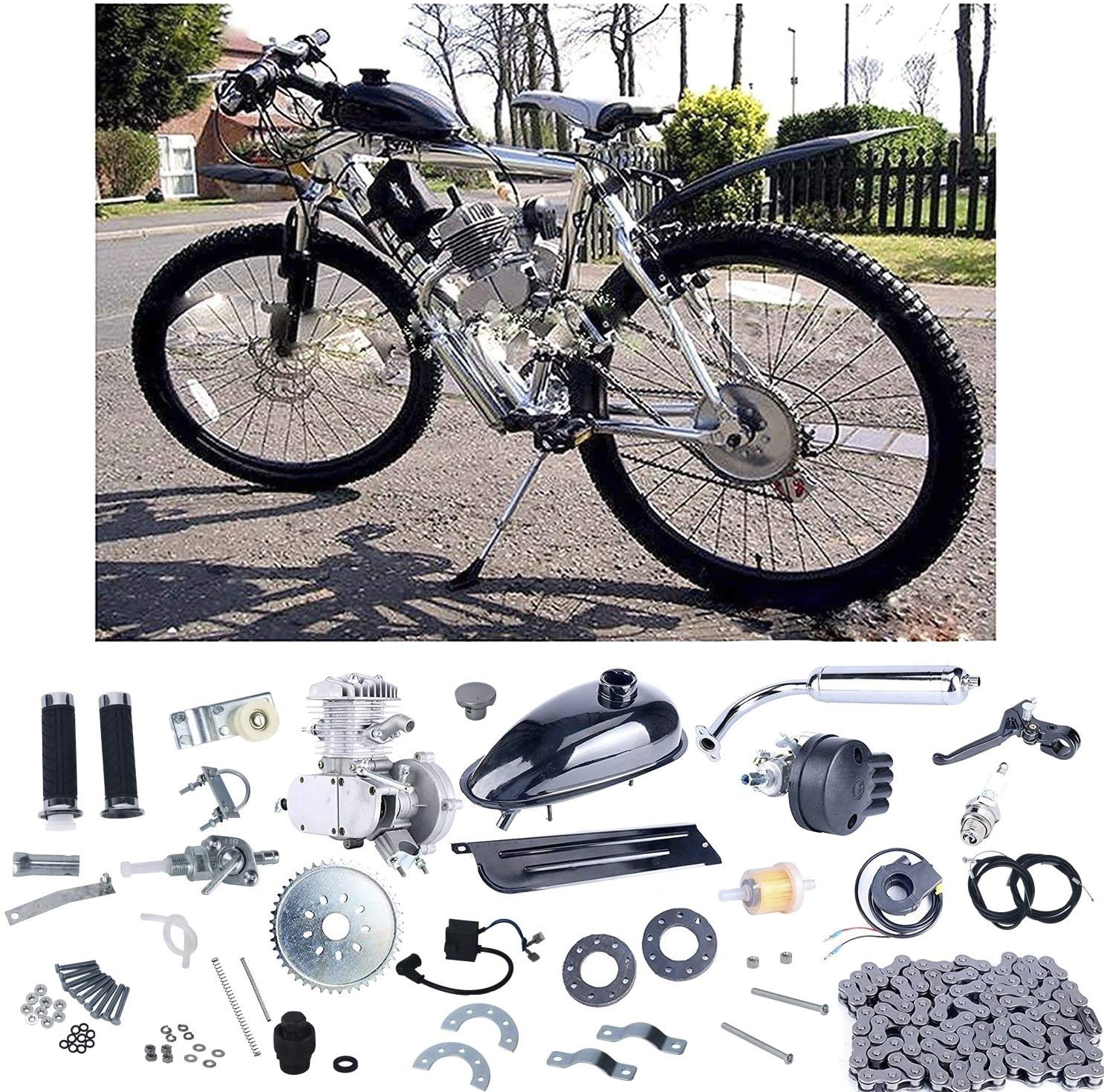

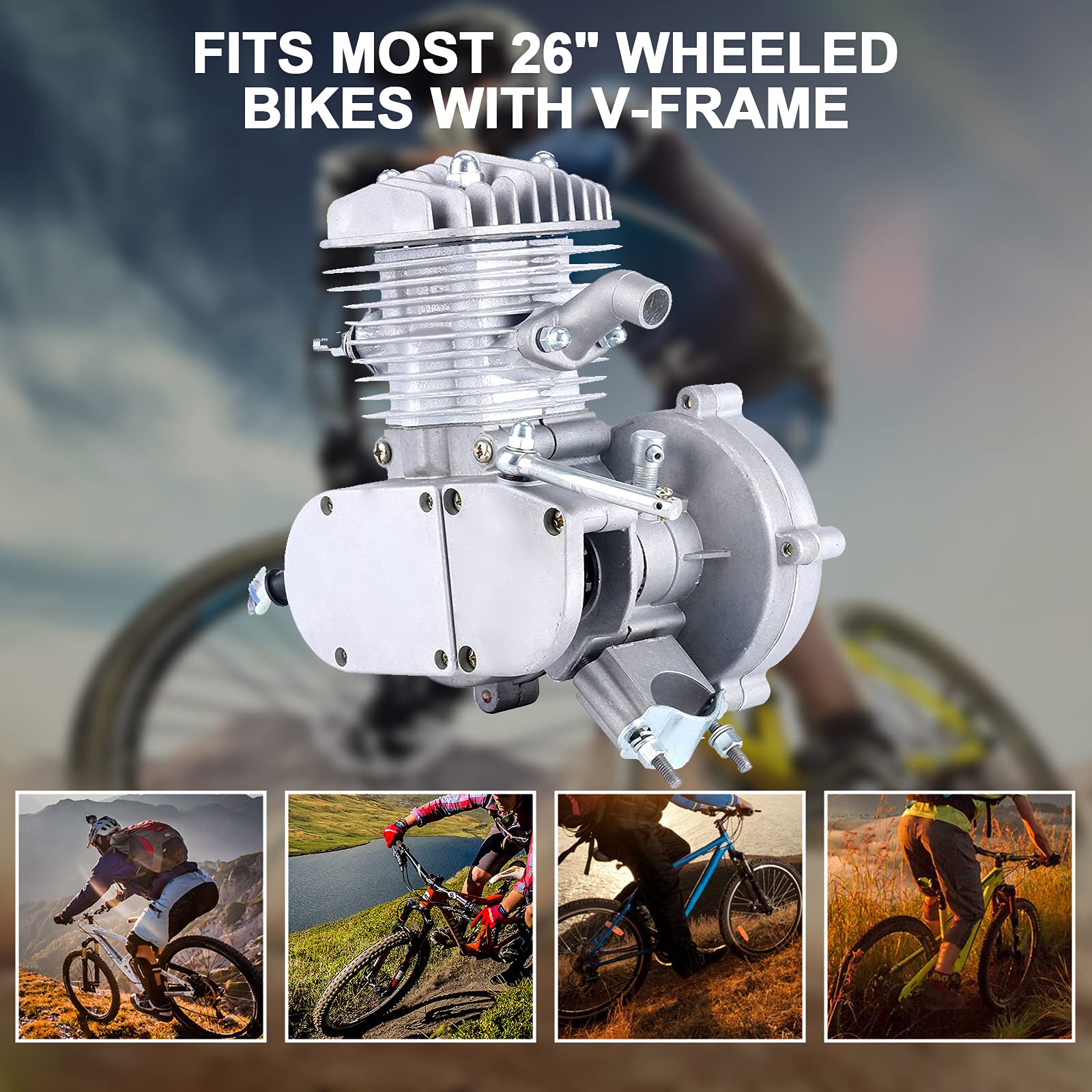

Fits Most 26" Wheeled Bikes (Mountain, Cruiser, Chopper, Road) with V-frame. The frame should have 9-11" of clearance between the bottom bracket and top bar, and the diameter of the frame tubes should be 25-29mm (around an 1").
NOTE Throttle grips may vary in appearance between shipments. However, this does not effect the performance of the engine.Upon purchase, the buyer agrees to use products for racing (closed-course competition) only and NOT for on/off public roads.
