Shanrya 250W Electric Bike Conversion Kit - ABS Gauge Aluminum Alloy E-Bike Motor Kit for Adults | Perfect for Commuting, Off-Road Adventures & Eco-Friendly Transportation
Free shipping on all orders over $50
7-15 days international
17 people viewing this product right now!
30-day free returns
Secure checkout
24798609
Description
Specification:Item Type: Electric Modification KitMaterial: Aluminum Alloy, ABS PlasticController Box: Approx. 82 x 53 x 31mm / 3.2 x 2.1 x 1.2in (manual measurement allowable error)Controller Rated Voltage: DC 36V/48VController Rated Current: 7AController Maximum Current: 15±1AController Speed Setting: 1-4.2VController Brake Input: Low LevelController Low Voltage Protection: DC 30/40±0.5VApplicable Brushless Motor Power: 250W, 350WConnector Type: Full Waterproof Connector1 to 2 Line Description: One End is Connected to the Controller, the Other End is Connected to the Meter and DialController Line Definition:1. Red, Black Single Wire: Power Wire2. Black Single Large Wire (9pin): Motor Wire3. Black Single Wire (9pin): 1 to 2 Wires4. Black Single Wire (3pin): PAS Power Sensor WireLCD5 Display Instrument Function Description: Up Button, Switch Button, Down Button, PAS Marking, Battery Capacity Indication, Power Assist Function, One Way Time, Total Travel Time, Throttle Display, 6km/h Thrust Assist System, Riding Speed (metric), Riding Speed (imperial), Maximum Speed, Average Speed, Distance (metric), Distance (imperial), Travel Distance, Total Distance, Battery Voltage, Brake Display, Backlight and Headlights.How to Use:Controller description: The wire color definition interface on the controller can be connected to the socket of the accessory to realize the function. For the specific operation, please refer to the wiring diagram and manual.Package List:1 x Controller1 x Meter1 x Instrument Manual1 x Throttle Controller1 x Servo Actuator Sensor1 x Controller Wiring User Manual1 x 1 to 2 Connecting LineNote:Note that the retrofit kit must be a fully waterproof kit
Features
ABS Meter: The meter adopts ABS material, which is light and durable, has good toughness and waterproof performance, and provides better protection for the internal circuit
Metal Housing: The controller housing is made of metal with grooved design, which can the internal circuit due to its good heat dissipation function, thus avoiding thermal overload

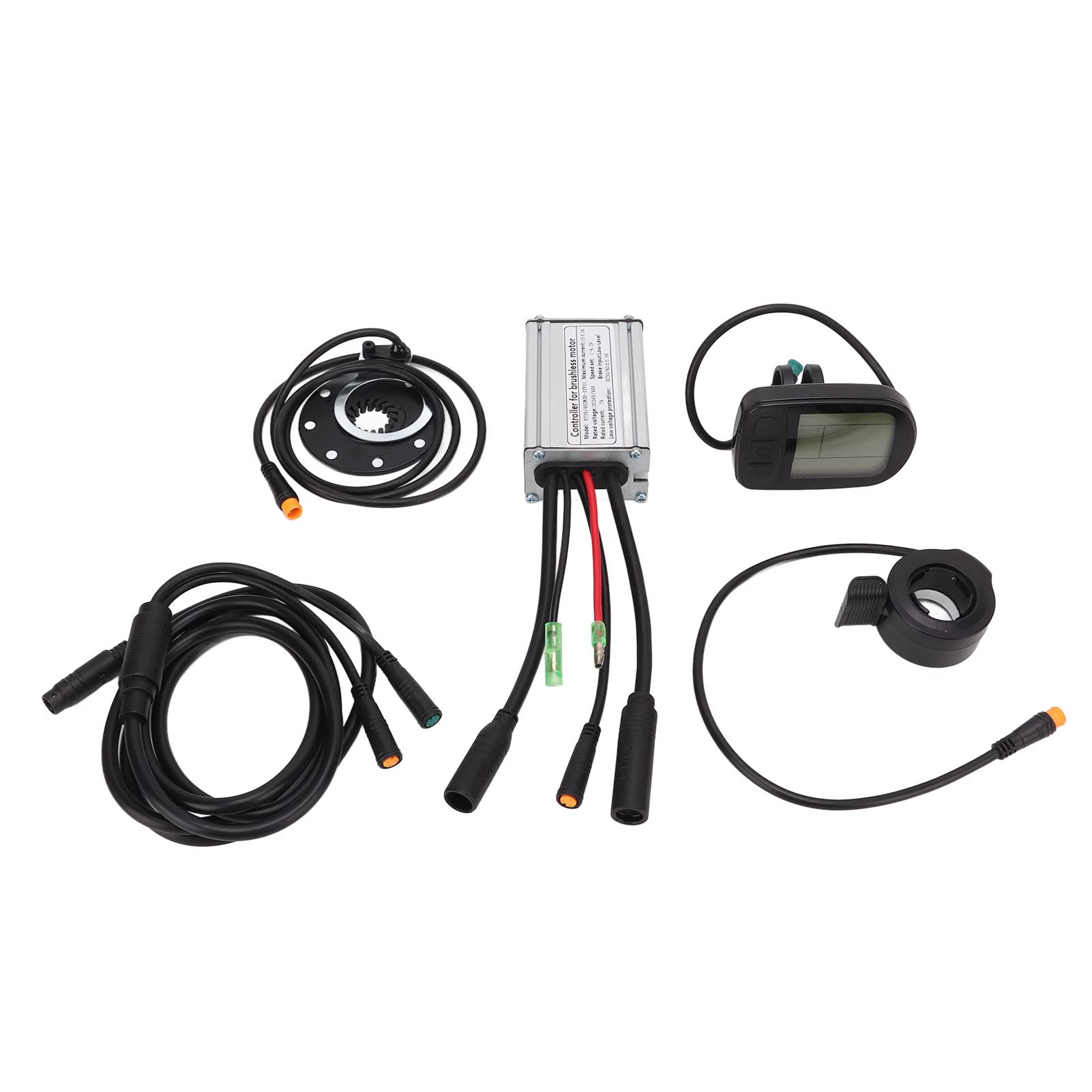

Package Contents: The electric modification kit includes controller, LCD5 instrument, shifter, servo actuator, 1 to 2 cable
Scope of Application: Suitable for 250W, 350W brushless motors, mainly used for DIY electric , electric vehicles, electric scooters, folding cars, etc
Data display: LCD5 display meter makes it easier to view the data on the panel, such as battery display, light display, brake display, temperature, time, speed, distance function, etc
