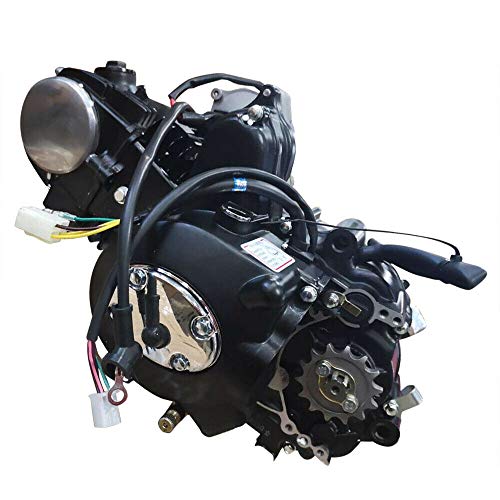

125CC 4-Stroke Air Cooled Engine Kit with CDI & Reverse Transmission - Perfect for ATV, Go Kart, Mini Bike & DIY Projects
Free shipping on all orders over $50
7-15 days international
17 people viewing this product right now!
30-day free returns
Secure checkout
59848149
Description
Fitment:125cc all size ATVs125cc all size Go KartsSpecifications:Ignition Method: CDIEngine Type: Single Cylinder 4-Stroke 2-ValveLubrication: Pressure/SplashCooling System: Air CooledFuel Supply: Carburetor AtomizationHorsepower: 7.6HP 5.7KW 7500±500RPMStarter: Pedal StarterMax. Torque: 8N.m 5500±500RPMTransmission: Semi Automatic (3 Forward, 1 Reverse)Min. Stable Idle Speed: 1500±150RPMClutch: Automatic Multi-plate Wet ClutchMin. Fuel Consumption: 9.65oz/hp.h (367g/kw.h)Cylinder Diameter: 2.13"/54mm Piston Stroke: 1.95"/49.5mmBore & Stroke: 2.13"x1.95" (54mmx49.5mm) Carburetor Model: PZ22Carburetor Type: Plunger type carburetorSpark Plug Model: A7TCCylinder Working Volume: 0.03Gal/120mlFuel No.≥ 87#Compression Ratio: 9:1Lubrication Model: SF15W/40-SEIgnition Type: CFWLubrication Capacity: 0.24 gallon = 900mlPackage size: 18'' x 13'' x 12''Shipping weight: 46 lbsNote:Installation Manual Is NOT Included Professional Installation Is Highly RecommendedPlease do not buy if your engine with starter bottom mounted since the mounting holes are not same.Package includes:1 x 125CC 4-Stroke Engine (with accessories as the pictures)
Features
【125CC 4 STROKE ENGINE MOTOR】Fits for 125cc all size ATVs and 125cc all size Go Karts. This engine 4 stroke, semi automatic transmission with reverse, electric start. Assembly comes with intake pipe, drive sprocket, sprocket cover & spark plug, but doesn't come with carburetor, battery, CDI, voltage regulator, ignition coil etc.
【HIGH QUALITY MATERIAL】Aluminum cylinder head and iron cylinder body, improves the heat dissipation capability, cuts the weight and increases the torque of the engine. The engine is low speed with high torque and has large diameter bearings for crankshaft connecting rod, increasing the reliability of the bearings.
【AIR COOLED ENGINE】There are metal fins covering the outside of the cylinders and the heat generated by the engine is released directly into the air when the cooling fan blows air over fins. It has the advantages of simple structure, light weight, wide adaptability to climate change, rapid start up and no need of radiator.
【HUMANIZED DESIGN】High-flow oil pump, reduces the wear of friction pairs and prolongs the engine life. The lubricating oil strainer helps removing solid contamination from lubricating oil, largely reducing the wear of friction pairs and prolonging the engine service life.
【MAIN PARAMETERS】Ignition Method CDI; Engine Type Single Cylinder 4-Stroke 2-Valve ; Lubrication Pressure/Splash; Cooling System Air Cooled; Fuel Supply Carburetor Atomization; Horsepower 7.6HP 5.7KW 7500±500RPM; Starter Pedal Starter; Max. Torque 8N.m 5500±500RPM; Transmission Semi Automatic (3 Forward, 1 Reverse); Min. Stable Idle Speed 1500±150RPM; Clutch Automatic Multi-plate Wet Clutch; Min. Fuel Consumption 9.65oz/hp.h (367g/kw.h).
